球閥

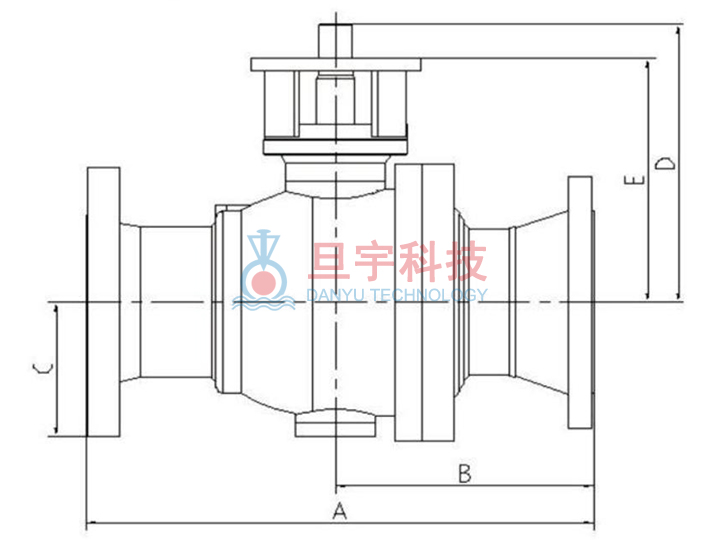

球閥尺寸標識
150#全通徑凸法蘭連接 |
公稱通徑 |
端部到端部尺寸A |
中心線到端部尺寸B |
C中心線到端部尺寸C |
中心線到頂部尺寸D |
中心線到頂部尺寸E |
近似重量 |
DN |
NPS |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
kg |
1b. |
15 |
1/2 |
108 |
4.25 |
54 |
2.13 |
64 |
2.50 |
64 |
2.50 |
51 |
2 |
9 |
20 |
20 |
3/4 |
117 |
4.63 |
60 |
2.38 |
64 |
2.50 |
64 |
2.50 |
51 |
2 |
11 |
25 |
25 |
1 |
127 |
5 |
68 |
2.69 |
140 |
2.50 |
140 |
5.50 |
127 |
5 |
13 |
28 |
40 |
1 1/2 |
165 |
6.50 |
70 |
2.75 |
137 |
3.13 |
137 |
5.38 |
124 |
4.88 |
18 |
40 |
50 |
2 |
179 |
7.06 |
79 |
3.10 |
182 |
3.63 |
182 |
7.17 |
155 |
6.10 |
23 |
51 |
80 |
3 |
204 |
8.06 |
99 |
3.88 |
230 |
4.63 |
230 |
9.07 |
189 |
7.45 |
45 |
99 |
100 |
4 |
230 |
9.06 |
93 |
3.65 |
252 |
5.25 |
252 |
9.93 |
211 |
8.31 |
61 |
134 |
150 |
6 |
394 |
15.50 |
189 |
7.44 |
340 |
7.63 |
340 |
13.38 |
279 |
11 |
203 |
447 |
200 |
8 |
457 |
18 |
233 |
9.19 |
407 |
9.38 |
407 |
16.01 |
335 |
13.20 |
306 |
674 |
250 |
10 |
533 |
21 |
272 |
10.72 |
519 |
11.75 |
519 |
20.42 |
422 |
16.63 |
573 |
1264 |
300 |
12 |
610 |
24 |
305 |
12 |
546 |
12.13 |
546 |
21.50 |
495 |
19.50 |
925 |
2040 |
300#全通徑凸法蘭連接 |
公稱通徑 |
端部到端部尺寸A |
中心線到端部尺寸B |
C中心線到端部尺寸C |
中心線到頂部尺寸D |
中心線到頂部尺寸E |
近似重量 |
DN |
NPS |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
kg |
1b. |
15 |
1/2 |
140 |
5.50 |
70 |
2.75 |
64 |
2.50 |
64 |
2.50 |
51 |
2 |
15 |
33 |
20 |
3/4 |
152 |
6 |
60 |
2.38 |
64 |
2.50 |
64 |
2.50 |
51 |
2 |
18 |
40 |
25 |
1 |
165 |
6.50 |
68 |
2.69 |
64 |
2.50 |
140 |
5.50 |
127 |
5 |
25 |
55 |
40 |
1 1/2 |
190 |
7.50 |
70 |
2.75 |
80 |
3.13 |
137 |
5.38 |
124 |
4.88 |
36 |
80 |
50 |
2 |
216 |
8.50 |
97 |
3.80 |
92 |
3.63 |
182 |
7.17 |
155 |
6.10 |
29 |
64 |
80 |
3 |
282 |
11.12 |
125 |
4.93 |
118 |
4.63 |
230 |
9.07 |
189 |
7.45 |
54 |
118 |
100 |
4 |
305 |
12 |
146 |
5.75 |
133 |
5.25 |
252 |
9.93 |
211 |
8.31 |
80 |
176 |
150 |
6 |
403 |
15.88 |
189 |
7.44 |
194 |
7.63 |
340 |
13.38 |
279 |
11 |
219 |
483 |
200 |
8 |
502 |
19.75 |
233 |
9.18 |
238 |
9.38 |
407 |
16.01 |
335 |
13.20 |
378 |
834 |
250 |
10 |
568 |
22.38 |
277 |
10.91 |
298 |
11.75 |
519 |
20.42 |
422 |
16.63 |
659 |
1452 |
300 |
12 |
648 |
25.50 |
246 |
9.69 |
308 |
12.13 |
546 |
21.50 |
495 |
19.50 |
1034 |
2280 |
600#全通徑凸法蘭連接 |
公稱通徑 |
端部到端部尺寸A |
中心線到端部尺寸B |
C中心線到端部尺寸C |
中心線到頂部尺寸D |
中心線到頂部尺寸E |
近似重量 |
DN |
NPS |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
kg |
1b. |
15 |
1/2 |
165 |
6.50 |
68 |
2.69 |
64 |
2.50 |
64 |
2.50 |
51 |
2 |
20 |
45 |
20 |
3/4 |
190 |
7.50 |
86 |
3.38 |
64 |
2.50 |
64 |
2.50 |
51 |
2 |
23 |
50 |
25 |
1 |
216 |
8.50 |
108 |
4.25 |
64 |
2.50 |
76 |
3 |
64 |
2.50 |
28 |
62 |
40 |
1 1/2 |
241 |
9.50 |
121 |
4.75 |
80 |
3.13 |
114 |
4.50 |
102 |
4 |
32 |
70 |
50 |
2 |
292 |
11.50 |
124 |
4.88 |
92 |
3.63 |
182 |
7.17 |
155 |
6.10 |
37 |
82 |
80 |
3 |
356 |
14 |
152 |
6 |
118 |
4.63 |
230 |
9.07 |
189 |
7.45 |
69 |
152 |
100 |
4 |
432 |
17 |
197 |
7.75 |
138 |
5.44 |
243 |
9.55 |
218 |
8.57 |
116 |
256 |
150 |
6 |
559 |
22 |
226 |
8.88 |
203 |
8 |
273 |
10.75 |
222 |
8.75 |
327 |
720 |
200 |
8 |
660 |
26 |
305 |
12 |
240 |
9.44 |
308 |
12.13 |
257 |
10.13 |
517 |
1140 |
250 |
10 |
787 |
31 |
349 |
13.75 |
273 |
10.75 |
384 |
15.13 |
334 |
13.13 |
925 |
2040 |
300 |
12 |
838 |
33 |
400 |
15.75 |
308 |
12.13 |
432 |
17 |
381 |
15 |
1197 |
2640 |
900#全通徑凸法蘭連接 |
公稱通徑 |
端部到端部尺寸A |
中心線到端部尺寸B |
C中心線到端部尺寸C |
中心線到頂部尺寸D |
中心線到頂部尺寸E |
近似重量 |
DN |
NPS |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
kg |
1b. |
15 |
1/2 |
229 |
9.00 |
114 |
4.50 |
76 |
3 |
121 |
4.75 |
108 |
4.25 |
20 |
45 |
20 |
3/4 |
229 |
9.00 |
114 |
4.50 |
76 |
3 |
121 |
4.75 |
108 |
4.25 |
18 |
40 |
25 |
1 |
254 |
10.00 |
127 |
5 |
76 |
3 |
121 |
4.75 |
108 |
4.25 |
29 |
63 |
40 |
1 1/2 |
305 |
12.00 |
152 |
6 |
114 |
4.50 |
121 |
4.75 |
108 |
4.25 |
44 |
98 |
50 |
2 |
368 |
14.50 |
152 |
6 |
109 |
4.31 |
211 |
8.30 |
170 |
6.70 |
72 |
158 |
80 |
3 |
381 |
15 |
165 |
6.50 |
124 |
4.88 |
234 |
9.22 |
194 |
7.65 |
89 |
196 |
100 |
4 |
457 |
18 |
184 |
7.25 |
168 |
6.63 |
222 |
8.75 |
197 |
7.75 |
240 |
530 |
150 |
6 |
610 |
24 |
245 |
9.63 |
222 |
8.75 |
283 |
11.13 |
232 |
8.75 |
522 |
1150 |
200 |
8 |
737 |
29 |
298 |
11.75 |
292 |
11.50 |
308 |
12.13 |
257 |
10.13 |
1009 |
2225 |
250 |
10 |
838 |
33 |
394 |
15.50 |
348 |
13.69 |
419 |
16.50 |
368 |
14.50 |
1746 |
3850 |
300 |
12 |
965 |
38 |
406 |
16 |
400 |
15.75 |
457 |
18 |
406 |
16 |
2223 |
4900 |
1500#全通徑凸法蘭連接 |
公稱通徑 |
端部到端部尺寸A |
中心線到端部尺寸B |
C中心線到端部尺寸C |
中心線到頂部尺寸D |
中心線到頂部尺寸E |
近似重量 |
DN |
NPS |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
mm |
In. |
kg |
1b. |
15 |
1/2 |
203 |
8 |
114 |
4.50 |
76 |
3 |
121 |
4.75 |
95 |
3.75 |
29 |
65 |
20 |
3/4 |
216 |
8.50 |
83 |
3.25 |
N/A |
N/A |
121 |
4.75 |
95 |
3.75 |
32 |
70 |
25 |
1 |
254 |
10 |
102 |
4 |
102 |
4 |
121 |
4.75 |
99 |
3.88 |
34 |
75 |
40 |
1 1/2 |
330 |
13 |
127 |
5 |
89 |
3.50 |
203 |
8 |
178 |
7 |
52 |
115 |
50 |
2 |
368 |
14.50 |
152 |
6 |
109 |
4.31 |
211 |
8.30 |
170 |
6.70 |
72 |
158 |
80 |
3 |
470 |
18.50 |
178 |
7 |
143 |
5.63 |
241 |
9.50 |
200 |
7.88 |
166 |
365 |
100 |
4 |
546 |
21.50 |
236 |
9.31 |
181 |
7.13 |
314 |
12.38 |
238 |
9.38 |
293 |
645 |
150 |
6 |
705 |
27.75 |
292 |
11.50 |
254 |
10 |
495 |
19.50 |
375 |
14.75 |
635 |
1400 |
200 |
8 |
832 |
32.75 |
375 |
14.75 |
318 |
12.50 |
508 |
20 |
419 |
16.50 |
1043 |
2300 |
250 |
10 |
991 |
39 |
429 |
16.88 |
394 |
15.50 |
610 |
24 |
533 |
21 |
1724 |
3800 |
300 |
12 |
1130 |
44.50 |
629 |
24.75 |
362 |
14.25 |
660 |
26 |
559 |
22 |
2041 |
4500 |
